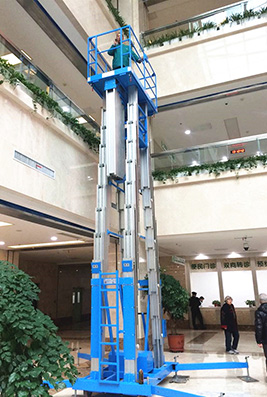

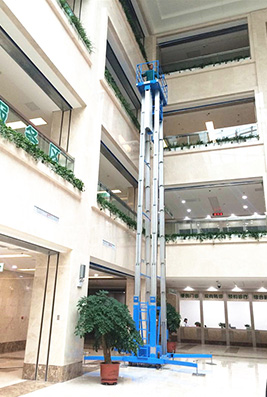

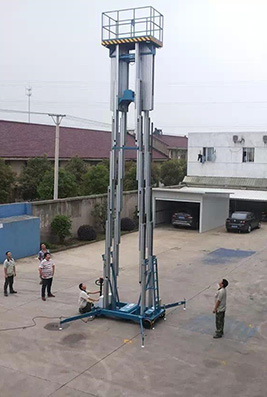

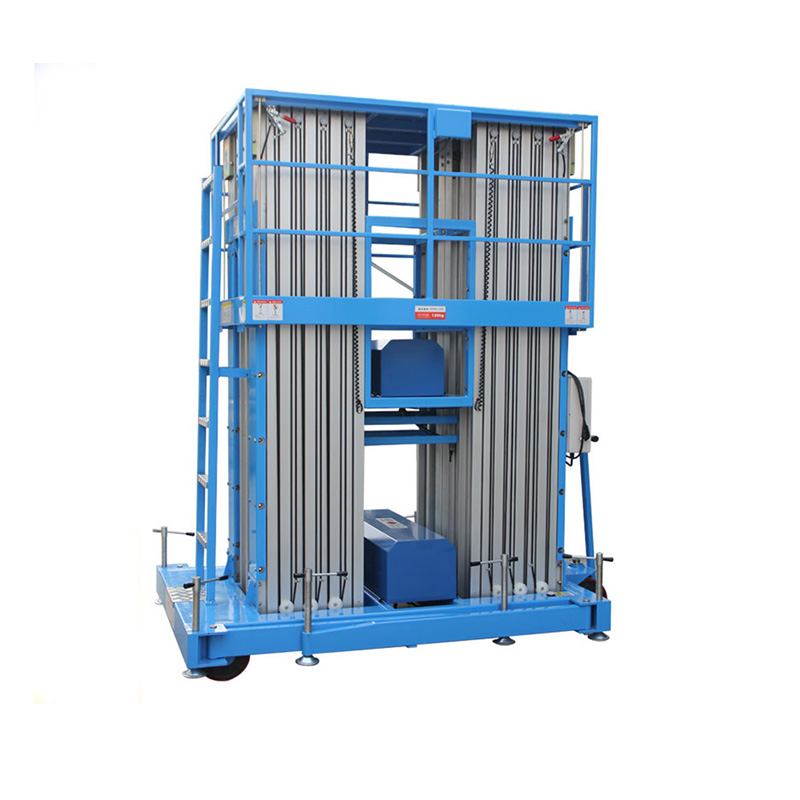

Six-mast Aerial Work Platform
The six-mast aluminum alloy lifting platform collection has the most inflexible lifting mast system, providing a high-strength aluminum alloy mast, interlocking system, retractable column and high-strength lifting double chains with a security issue of 10:1 and a metal wire security safety machine to support the electricity and reliability of the overall performance and a welded high-strength metal base appropriate for harsh working environments.
Application:
Six-mast aluminum alloy lifting platform, with stunning appearance, small size, lightweight, bendy and handy operation; up and down two units of manipulate lifting system, lifting smoothly, securely and reliably. Suitable for purchasing malls, hotels, restaurants, indoor decoration, exhibitions, area mild line, pipeline, doorways and home windows repair, preservation and cleaning, appropriate for region or area slender workshop area operations, is the perfect lifting machinery, welcomed by the majority of users.
Product Features:
Six masts lifting, the most working top of 26 meters. Made of incredible aluminum alloy, lightweight design, robust and safe, the vast platform can load a whole of two humans and equipment to work, greater high quality and safety.
Technical Parameters:
Model | GTWY42-18 S | GTWY42-20S | GTWY42-22S | GTWY42-24S |
Working height(m) | 20 | 22 | 24 | 26 |
Platform height（m） | 18 | 20 | 22 | 24 |
Load capacity(kg) | 150 | 150 | 150 | 150 |
Collection length(m) | 2.1 | 2.1 | 2.1 | 2.1 |
Collection Width（m） | 1.4 | 1.4 | 1.4 | 1.4 |
Collection height（m） | 2.3 | 2.45 | 2.6 | 2.75 |
Platform length（m） | 1.65 | 1.65 | 1.65 | 1.65 |
Platform width（m） | 0.9 | 0.9 | 0.9 | 0.9 |
Height of guardrail(m) | 1 | 1 | 1 | 1 |
Outrigger expansion size(m) | 2.40x2.0 | 2.70x2.40 | 2.95x2.70 | 3.10x2.90 |
Voltage (v) AC/DC | 220v | 220v | 220v | 220v |
Motor power (kw) | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed during operation | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s)） | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Operating Weight (kg) | 1800 | 1950 | 2200 | 2400 |
