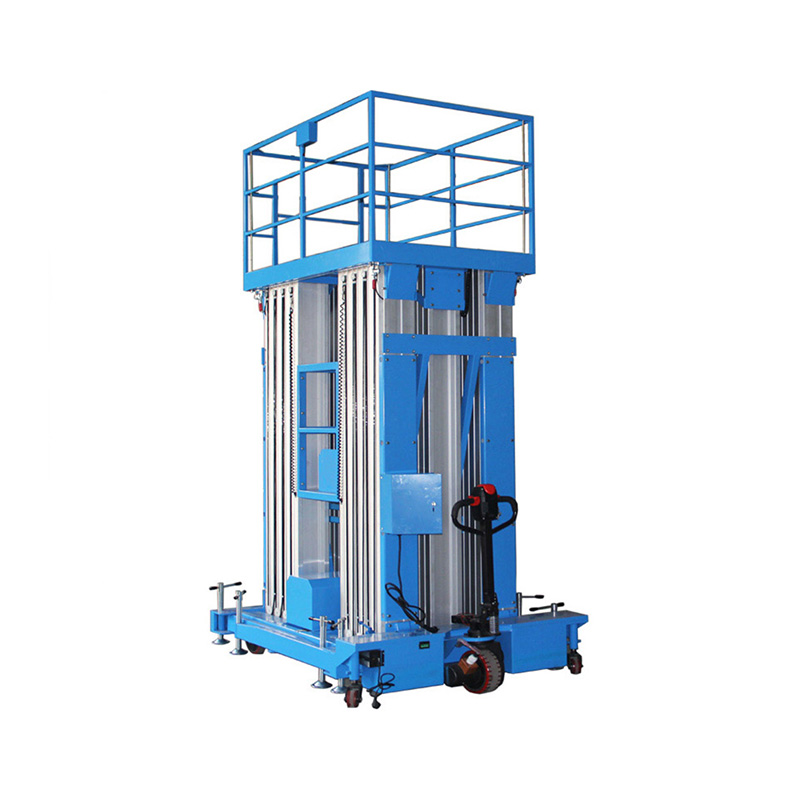

Six-mast Aluminum Alloy Aerial Work Platform
The six-mast aluminum alloy lifting platform sequence has the most inflexible lifting mast system, offering a high-strength aluminum alloy mast, interlocking system, retractable column and high-strength lifting double chains with a security issue of 10:1 and a metal wire security safety gadget to beef up the power and reliability of the overall performance and a welded high-strength metal base appropriate for harsh working environments.
Application:
Six mast aluminum alloy lifting platform, with a lovely appearance, small size, lightweight, bendy and handy operation; up and down two units of manage lifting system, lifting smoothly, protected and reliable. Suitable for buying malls, hotels, restaurants, indoor decoration, exhibitions, area mild line, pipeline, doorways and home windows repair, preservation and cleaning, appropriate for region or house slim workshop house operations, is the perfect lifting machinery, welcomed by the majority of users.
Product Features:
Six masts lifting, the most working top of 26 meters. Made of super aluminum alloy, lightweight design, robust and safe, the extensive platform can load a complete of two human beings and equipment to work, greater high-quality and safe.
Technical Parameters:
Model | GTWY42-18 S | GTWY42-20S | GTWY42-22S | GTWY42-24S |
Working height(m) | 20 | 22 | 24 | 26 |
Platform height（m） | 18 | 20 | 22 | 24 |
Load capacity(kg) | 150 | 150 | 150 | 150 |
Collection length(m) | 2.1 | 2.1 | 2.1 | 2.1 |
Collection Width（m） | 1.4 | 1.4 | 1.4 | 1.4 |
Collection height（m） | 2.3 | 2.45 | 2.6 | 2.75 |
Platform length（m） | 1.65 | 1.65 | 1.65 | 1.65 |
Platform width（m） | 0.9 | 0.9 | 0.9 | 0.9 |
Height of guardrail(m) | 1 | 1 | 1 | 1 |
Outrigger expansion size(m) | 2.40x2.0 | 2.70x2.40 | 2.95x2.70 | 3.10x2.90 |
Voltage (v) AC/DC | 220v | 220v | 220v | 220v |
Motor power (kw) | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed during operation | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s)） | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Operating Weight (kg) | 1800 | 1950 | 2200 | 2400 |
