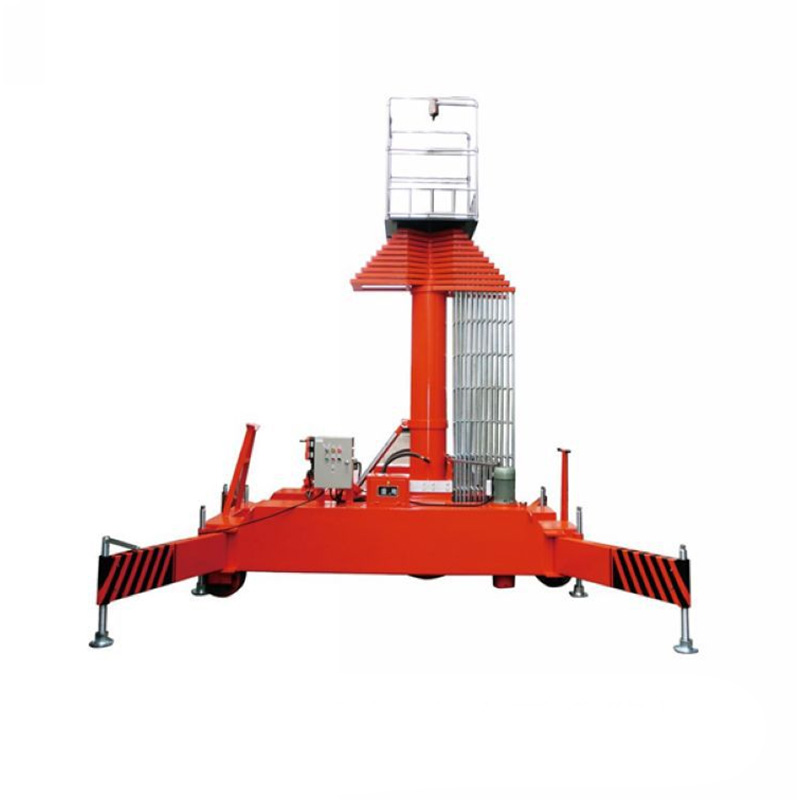

Double Ladder Tilting Sleeve Cylinder Elevator

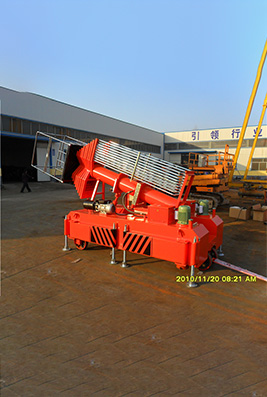

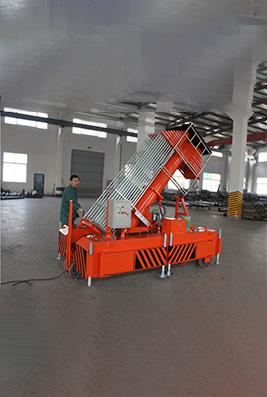

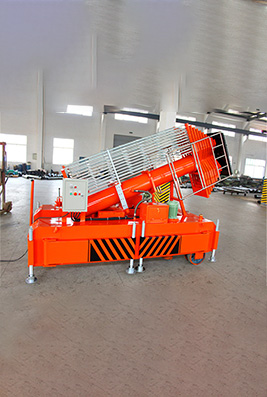

The double ladder tilting sleeve cylinder kind aerial work platform is managed up and down, with electrically powered lifting, making aerial work safer and greater efficiency. This series of elevators are broadly used for lifting operations in municipal, electric-powered power, road lamps, highways, docks, advertisements, gardens, residential property, factories, mining enterprises, workshops and different industries. This gear is appropriate for giant exhibition facilities and tall halls, with a running peak of extra than 20m. When the oil cylinder is tilted, it can enter and exit the gate freely and is handy to the region and maintenance. The top of the elevator can attain 35m, and the imported Wi-Fi far flung manages the operation.
Product Introduction:
Jacketed aerial work platform: moreover identified as a jacketed lifting platform, it is a multi-purpose aerial work machine. Its attribute is to ship the platform with operators and equipment to a distinct height for special engineering equipment for aerial work. This tool is largely used in industrial and mining workshops, tall halls, warehouses, stations, squares, and high-altitude operations.
Product Parameter:
Model | GTTY-20 | GTTY-22 | GTTY-24 |
Working height(m) | 22 | 24 | 26 |
Platform height(m) | 20 | 22 | 24 |
Load capacity(kg) | 150 | 150 | 150 |
Collection length(m) | 2.8 | 2.9 | 3 |
Collection Width(m) | 1.45 | 1.45 | 1.5 |
Collection height(m) | 2.2 | 2.25 | 2.25 |
Platform length(m) | 0.8 | 0.8 | 0.8 |
Platform width(m) | 0.8 | 0.8 | 0.8 |
Height of guardrail(m) | 1 | 1 | 1 |
Wind resistance (level) | 5 | 5 | 4 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.1x2 | 1.1x2 | 1.1x2 |
Walking mode | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
Operating Weight (kg) | 2350 | 2500 | 2650 |
Model | GTTY-26 | GTTY-28 | GTTY-30 |
Working height(m) | 28 | 30 | 32 |
Platform height(m) | 26 | 28 | 30 |
Load capacity(kg) | 150 | 120 | 120 |
Collection length(m) | 3.1 | 3.2 | 3.2 |
Collection Width(m) | 1.5 | 1.6 | 1.6 |
Collection height(m) | 2.3 | 2.35 | 2.35 |
Platform length(m) | 0.8 | 0.8 | 0.8 |
Platform width(m) | 0.8 | 0.8 | 0.8 |
Height of guardrail(m) | 1 | 1 | 1 |
Wind resistance(level) | 5 | 5 | 4 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.1x2 | 1.1x2 | 1.1x2 |
Walking mode | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
Operating Weight (kg) | 2800 | 3000 | 3200 |
| Model | GTTY—20 | GTTY—22 | GTTY—24 |
| Working height(m) | 22 | 24 | 26 |
| Platform height(m) | 20 | 22 | 24 |
| Load capacity(kg) | 150 | 150 | 150 |
| Collection length(m) | 2.8 | 2.9 | 3 |
| Collection Width(m) | 1.45 | 1.45 | 1.5 |
| Collection height(m) | 2.2 | 2.25 | 2.25 |
| Platform length(m) | 0.8 | 0.8 | 0.8 |
| Platform width(m) | 0.8 | 0.8 | 0.8 |
| Height of guardrail(m) | 1 | 1 | 1 |
| Wind resistance (level) | 5 | 5 | 4 |
| Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
| Motor power (kw) | 1.1x2 | 1.1x2 | 1.1x2 |
| Walking mode | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction |
| System oil pressure | 12Mpa | 12Mpa | 12Mpa |
| Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
| Operating Weight (kg) | 2350 | 2500 | 2650 |
