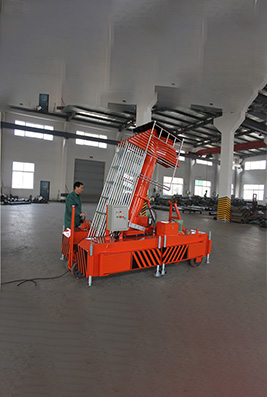

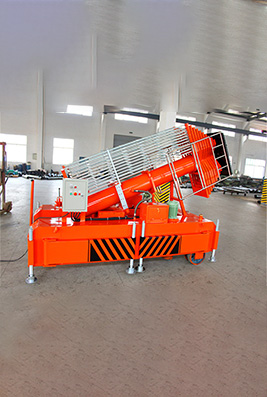

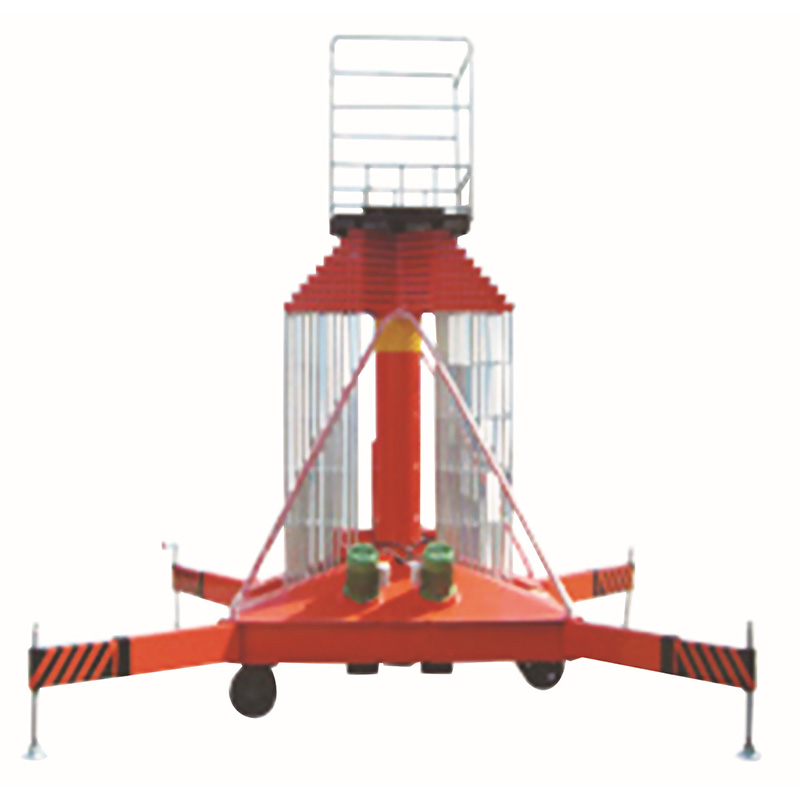

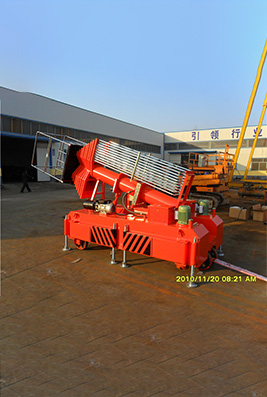

Double Ladder Tilting Sleeve Cylinder Aerial Work Platform
The total laptop of the twin ladder tilting sleeve cylinder kind aerial work platform is composed of a platform, telescopic oil cylinder, single ladder or double ladder anti-rotation mechanism, chassis oil tank, outrigger, on-foot wheel, etc. The platform is without delay jacked by using the telescopic oil cylinder. When the motor is started, the motor drives the equipment pump to grant oil. The oil is enter into the oil cylinder thru the one-way valve and the electromagnetic channel, and the telescopic oil cylinder rises part by way of section. When the platform rises to the most height, the device stress additionally reaches the rated working pressure. At this time, there is an overflow valve to unload, and the oil strain is maintained at a steady working pressure. After the shutdown, the one-way valve continues the strain and the platform stays at the most working position, The platform can remain at any role under the most top in accordance with the working peak on-site.
Application:
The double ladder tilting sleeve cylinder kind aerial work platform is managed up and down, with electrically powered lifting, making aerial work safer and extra efficient. This sequence of elevators is broadly used for lifting operations in municipal, electric-powered power, avenue lamps, highways, docks, advertisements, gardens, residential property, factories, mining enterprises, workshops and different industries. This gear is appropriate for massive exhibition facilities and tall halls, with a running peak of greater than 20m. When the oil cylinder is tilted, it can enter and exit the gate freely and is handy for location and maintenance. The top of the elevator can attain 35m, and the imported wi-fi far off manipulate operation.
Product Parameter:
Model | GTTY-20 | GTTY-22 | GTTY-24 |
Working height(m) | 22 | 24 | 26 |
Platform height(m) | 20 | 22 | 24 |
Load capacity(kg) | 150 | 150 | 150 |
Collection length(m) | 2.8 | 2.9 | 3 |
Collection Width(m) | 1.45 | 1.45 | 1.5 |
Collection height(m) | 2.2 | 2.25 | 2.25 |
Platform length(m) | 0.8 | 0.8 | 0.8 |
Platform width(m) | 0.8 | 0.8 | 0.8 |
Height of guardrail(m) | 1 | 1 | 1 |
Wind resistance (level) | 5 | 5 | 4 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.1x2 | 1.1x2 | 1.1x2 |
Walking mode | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
Operating Weight (kg) | 2350 | 2500 | 2650 |
Model | GTTY-26 | GTTY-28 | GTTY-30 |
Working height(m) | 28 | 30 | 32 |
Platform height(m) | 26 | 28 | 30 |
Load capacity(kg) | 150 | 120 | 120 |
Collection length(m) | 3.1 | 3.2 | 3.2 |
Collection Width(m) | 1.5 | 1.6 | 1.6 |
Collection height(m) | 2.3 | 2.35 | 2.35 |
Platform length(m) | 0.8 | 0.8 | 0.8 |
Platform width(m) | 0.8 | 0.8 | 0.8 |
Height of guardrail(m) | 1 | 1 | 1 |
Wind resistance(level) | 5 | 5 | 4 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 1.1x2 | 1.1x2 | 1.1x2 |
Walking mode | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
Operating Weight (kg) | 2800 | 3000 | 3200 |
| Model | GTTY—20 | GTTY—22 | GTTY—24 |
| Working height(m) | 22 | 24 | 26 |
| Platform height(m) | 20 | 22 | 24 |
| Load capacity(kg) | 150 | 150 | 150 |
| Collection length(m) | 2.8 | 2.9 | 3 |
| Collection Width(m) | 1.45 | 1.45 | 1.5 |
| Collection height(m) | 2.2 | 2.25 | 2.25 |
| Platform length(m) | 0.8 | 0.8 | 0.8 |
| Platform width(m) | 0.8 | 0.8 | 0.8 |
| Height of guardrail(m) | 1 | 1 | 1 |
| Wind resistance (level) | 5 | 5 | 4 |
| Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
| Motor power (kw) | 1.1x2 | 1.1x2 | 1.1x2 |
| Walking mode | Electric auxiliary traction | Electric auxiliary traction | Electric auxiliary traction |
| System oil pressure | 12Mpa | 12Mpa | 12Mpa |
| Rise/fall speed (m/s) | 0.02/0.05 | 0.02/0.05 | 0.02/0.05 |
| Operating Weight (kg) | 2350 | 2500 | 2650 |
