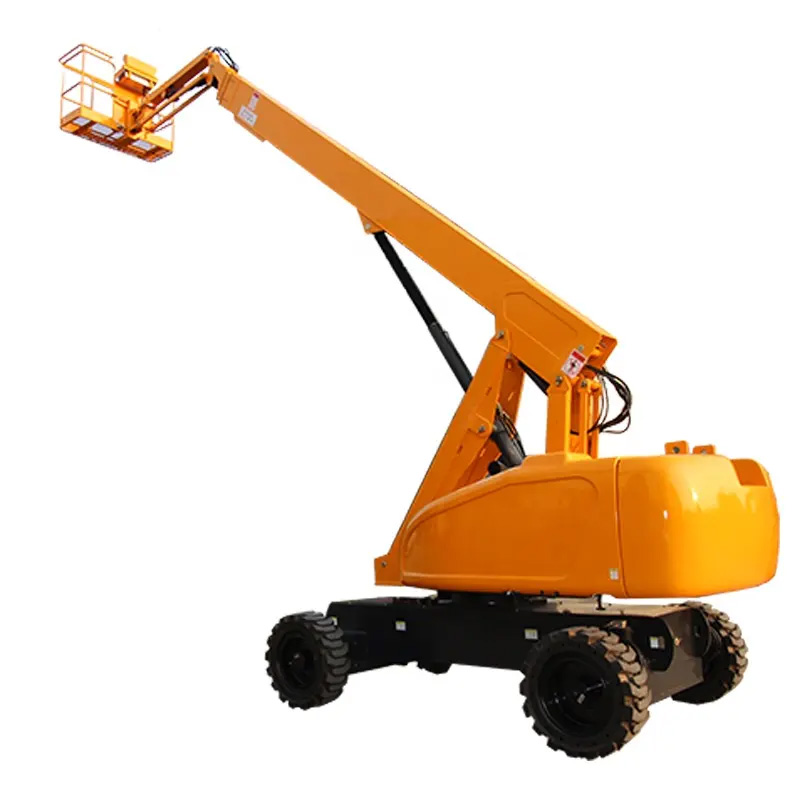

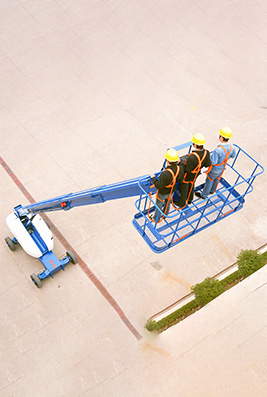

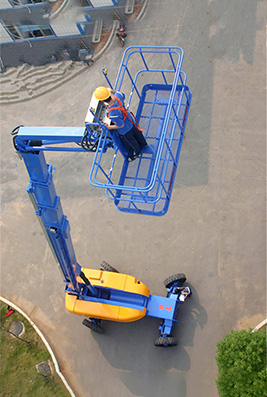

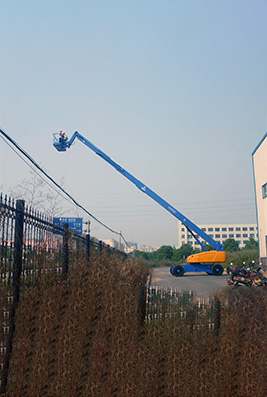

GTBZ Type Self Propelled Straight Arm Lift
GTBZ kind self-propelled straight arm aerial working platform can stroll freely when working at heights, with giant working vary and excessive efficiency. The hydraulic motor can acquire 40% of the mountaineering ability via the planetary reducer. The telescopic increase and oil cylinder are supplied with dust-proof sheath, which can correctly stop dirt from entering. The easy form format makes it challenging for the increase and chassis to keep sand and dust. The lengthy perspective sensor can reveal the size and attitude of the growth in actual time. The safety stage of the electrical machine is above IP65. The horizontal extension operation range of the computing device is large, and it can additionally continually entire high-altitude operation inside a positive range. There are two and 4 wheel drive, two and 4 wheel guidance configurations. Especially appropriate for shipbuilding, ship repair, constructing construction, metal shape installation, bridge construction, etc.
Product Features:
The patented sleeve-type drag chain mechanism. The high-pressure oil pipes and cables connected between the platform and the turntable are easily disturbed or broken due to the deflection deformation of the boom and the excessive deflection of the cantilever drag chain mechanism itself. Therefore, the drag chain mechanism of this project adopts the patented technology of our company - sleeve-type drag chain mechanism, which ensures the safety and stability of the electrical and hydraulic systems during the telescopic process of the boom.
Technical Parameters:
Model | GTBZ-23 | GTBZ-25 | GTBZ-27 |
Maximum working height(m) | 25 | 27.2 | 28.7 |
Maximum lifting height (m) | 23 | 25.2 | 26.7 |
Maximum horizontal working radius (m) | 20.8 | 21.9 | 23.4 |
Maximum bearing capacity(kg) | 480/260 | 480/260 | 480/330 |
Turning radius of inner wheel(m) | 3 | 3.59 | 3.59 |
Turning radius of outer ship(m) | 5.2 | 5.95 | 6.25 |
Platform size (L x W x H)(m) | 1.83×0.76×1.13 | 1.83×0.76×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 11.08×2.49×2.7 | 11.36×2.79×2.8 | 8.66×2.49×2.83 |
Wheelbase (m) | 2.8 | 3 | 3 |
Max Climb Capability | 0.3 | 0.3 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～1.0 | 0～1.0 | 0～1.0 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 3 | 3 | 3 |
Boom luffing angle (°) | －10～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.44 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h) | 6.3 | 5.3 | 5.3 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 12 | 24 | 24 |
Rated power of engine (kw/rmp) | 56/2200 | 56/2200 | 60/2200 |
Drive wheel size | 45219 | 45280 | 45280 |
Drive steering type | 4×2×2 | 4×2×2 | 4×2×2 |
Operating Weight (kg) | 13540 | 15500 | 16140 |
Model | GTBZ-30 | GTBZ-32 | GTBZ-36 |
Maximum working height(m) | 32.5 | 34 | 38.7 |
Maximum lifting height (m) | 30.5 | 32 | 36.7 |
Maximum horizontal working radius (m) | 22.9 | 22.9 | 20.5 |
Maximum bearing capacity(kg) | 480/340 | 480/340 | 480/340 |
Turning radius of inner wheel(m) | 4.14 | 4.14 | 3.13 |
Turning radius of outer ship(m) | 6.56 | 6.56 | 6.75 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 13×2.49×3.08 | 13×2.49×3.12 | 13×2.49×3.18 |
Wheelbase (m) | 3.66 | 3.66 | 3.9 |
Max Climb Capability | 0.4 | 0.4 | 0.4 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～0.8 | 0～0.8 | 0～0.8 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 3 | 3 | 3 |
Boom luffing angle (°) | －12～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h) | 4.4 | 4.4 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Rated power of engine (kw/rmp) | 60/2200 | 60/2200 | 60/2200 |
Drive wheel size | 45219 | 45280 | 45280 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Operating Weight (kg) | 18500 | 18660 | 20000 |
Model | GTBZ-38 | GTBZ-42 | GTBZ-46 |
Maximum working height(m) | 40.4 | 44 | 48 |
Maximum lifting height (m) | 38.4 | 42 | 46 |
Maximum horizontal working radius (m) | 22.9 | 23 | 23.4 |
Maximum bearing capacity(kg) | 480/230 | 480/230 | 480/230 |
Turning radius of inner wheel(m) | 3.13 | 3.13 | 4.13 |
Turning radius of outer ship(m) | 6.75 | 6.75 | 7.02 |
Platform size (L x W x H)(m) | 2.44×0.91×1.13 | 2.44×0.91×1.13 | 2.44×0.91×1.13 |
Collection size (L x W x H)(m) | 14.1×2.49×3.22 | 13.65×2.49×3.28 | 13.26×2.8×3.36 |
Wheelbase (m) | 3.9 | 3.9 | 4.2 |
Max Climb Capability | 0.4 | 0.4 | 0.3 |
Turntable rotation angle (°) | 360 | 360 | 360 |
Rotary speed of turntable(rpm) | 0～0.8 | 0～0.8 | 0～0.3 |
Platform rotation angle (°) | 160 | 160 | 160 |
Number of boom sections(section) | 4 | 4 | 4 |
Boom luffing angle (°) | －12～＋75 | －12～＋75 | －12～＋75 |
Maximum hydraulic pressure(MPa) | 21 | 21 | 21 |
Maximum pressure of traveling system (MPa) | 25 | 25 | 25 |
Ground clearance (m) | 0.43 | 0.43 | 0.43 |
Fuel tank capacity (L) | 151 | 151 | 151 |
Driving speed (stowed)(km/h） | 4.4 | 4.4 | 4.4 |
Driving speed (lifting status)(km/h) | 1.1 | 1.1 | 1.1 |
System voltage (V) | 24 | 24 | 24 |
Rated power of engine(kw/rmp) | 60/2200 | 60/2200 | 60/2200 |
Drive wheel size | 45280 | 45280 | 385x65-22.5 |
Drive steering type | 4×4×4 | 4×4×4 | 4×4×4 |
Operating Weight (kg) | 20900 | 21900 | 24900 |
