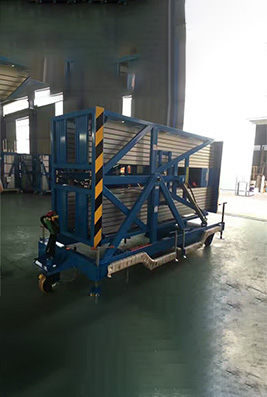

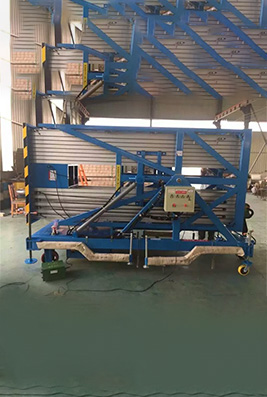

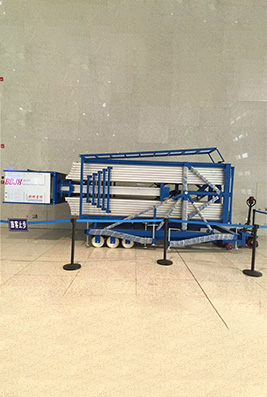

Four Mast Aluminum Alloy Aerial Working Platform
The four-mast aluminum alloy lifting platform series has the most rigid lifting mast system, which features: a high-strength aluminum alloy mast, interlocking system, retractable column and high-strength lifting double chain with a safety factor of 10:1, and a steel wire safety protection system available to strengthen the strength and reliability of performance and its welded high-strength steel base is suitable for harsh working environment.
Application:
Four mast aluminum alloy lifting platform ,with beautiful appearance, small size, light weight, flexible and convenient operation; up and down two sets of control lifting system, lifting smoothly, safe and reliable. Suitable for shopping malls, hotels, restaurants, indoor decoration, exhibition, space light line, pipeline, doors and windows repair, maintenance and cleaning, suitable for area or space narrow workshop space operations, is the ideal lifting machinery, welcomed by the majority of users.
Product Features:

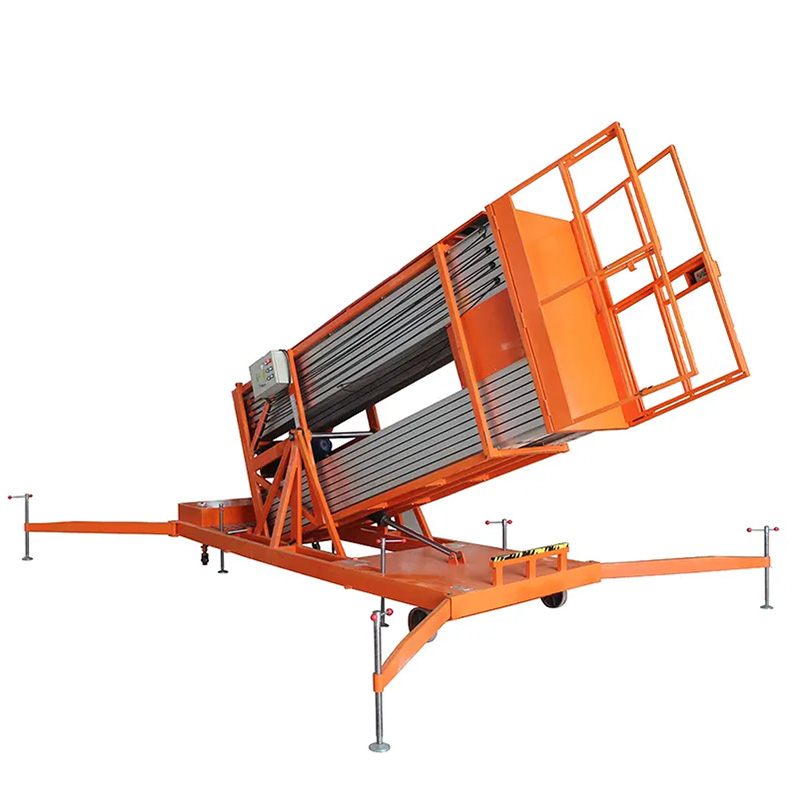

Four mast lift, suitable for aerial work that other lifts can not reach, the maximum working height of up to 20 meters, the maximum load of about 200KG, smooth operation, safe and sturdy, equipped with a hydraulic flip frame for standard access door access.
Technical Parameters:
| Model | GTWY4-14S | GTWY4-15S | GTWY4-16S | GTWY4-18S |
| Working height（m） | 16 | 17 | 18 | 20 |
| Platform height（m） | 14 | 15 | 16 | 18 |
| Load capacity(kg) | 200 | 200 | 200 | 200 |
| Collection length(m) | 2.1 | 2.1 | 2.1 | 2.1 |
| Collection Width（m） | 1.2 | 1.2 | 1.2 | 1.2 |
| Collection height（m） | 2.32 | 2.52 | 2.67 | 2.85 |
| Platform length（m） | 1.6 | 1.6 | 1.6 | 1.6 |
| Platform width（m） | 0.8 | 0.8 | 0.8 | 0.8 |
| Height of guardrail（m） | 1 | 1 | 1 | 1 |
| Outrigger expansion size（m） | 2.40x2.0 | 2.70x2.40 | 2.95x2.70 | 3.10x2.90 |
| Voltage (v) AC/DC | 220v | 220v | 220v | 220v |
| Motor power (kw) | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
| Walking mode | Manpower implementation | Manpower implementation | Manpower implementation | Manpower implementation |
| Maximum allowable wind speed during operation | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s |
| System oil pressure | 12Mpa | 12Mpa | 12Mpa | 12Mpa |
| Rise/fall speed (m/s)） | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
| Operating Weight (kg) | 1250 | 1350 | 1450 | 1550 |
