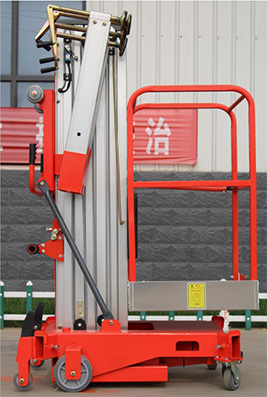

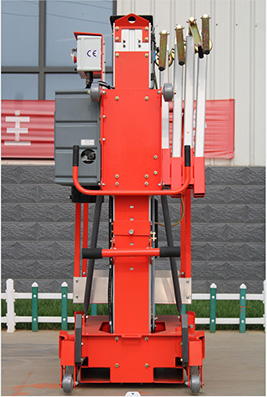

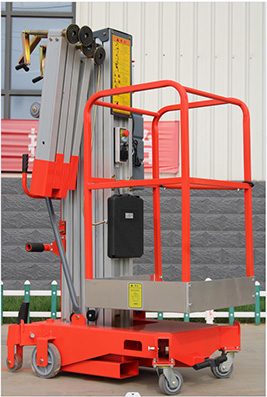

Single Mast Aluminum Alloy Working Platform
Single mast aluminum alloy lifting platform collection strengthens the aluminum alloy mast plan to make certain clean operation and no deformation of the mast. The shape is particular and compact and the physique plan is lightweight to make certain the best quality.
Built-in backup energy grant and guide valve layout make certain that the managed platform can be diminished on the platform or floor in case of electricity failure. The fuselage base is geared up with a movable auxiliary wheel to furnish right-turning overall performance and without difficulty go common floor obstacles.
The single mast model is outfitted with a truck loading and unloading auxiliary device, which can be loaded and unloaded by means of two people. The load protection aspect of the lifting chain is 10:1 and a metal wire security safety device is supplied to make sure easy and secure lifting.
The assisting ft cowl is an extraordinarily small area. After installation, the distance from the platform to the wall is 0.34 meters, which is handy for operation.
Product Application:

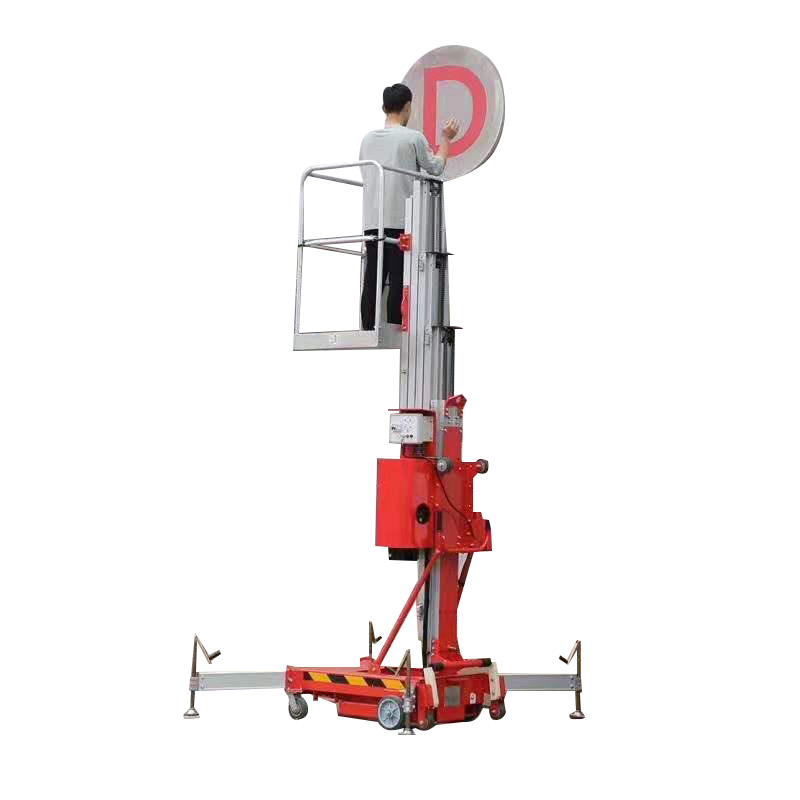

Single mast aluminum alloy lifting platform has a stunning appearance, small size, lightweight, bendy and handy operation; Up and down two sets of managed lifting system, steady lifting, secure and reliable. It is relevant to the repair, protection and cleansing of buying malls, hotels, restaurants, indoor decoration, exhibitions, area mild lines, pipelines, doorways and windows, as nicely as house operations in workshops with slim areas or spaces. It is a perfect lifting computer and is welcomed by means of the majority of users.
Product Features:

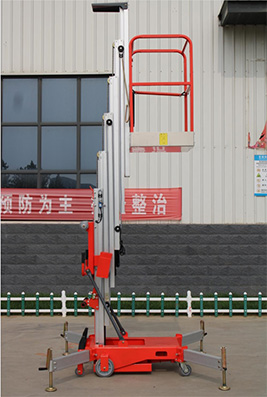

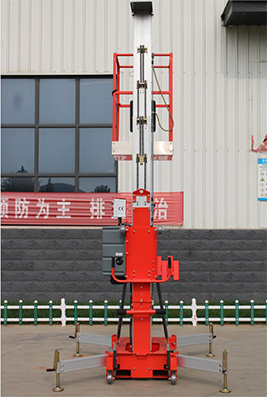

The single mast aluminum alloy lifting platform is an aluminum alloy mild single character sequence aerial working platform with the electro-hydraulic transmission, which is secure and reliable. The most working top can attain 14 meters, and the most load is 100 kg. It makes use of the internationally used protection plug-in outriggers, which are interlocked with the shrewd electric-powered control, to supply obligatory protection safety for operators. The raised desk is small in size, mild in weight, bendy and handy in movement, and can without difficulty bypass via the normal room and elevator door. The exceptional and overall performance exceeds JC5099-1998, JG/T5103-1998, CE and different security standards.
Aerial Working Platform Parameters Technical Parameters：
Model | GTWY1-6 | GTWY1-8 | GTWY1-9 |
Working height (m) | 8 | 10 | 11 |
Platform height (m) | 6 | 8 | 9 |
Load capacity (kg) | 150 | 150 | 150 |
Collection length (m) | 1.24 | 1.36 | 1.4 |
Collection width (m) | 0.74 | 0.74 | 0.74 |
Collection height (m) | 1.99 | 1.99 | 1.99 |
Platform length (m) | 0.67 | 0.67 | 0.67 |
Platform width (m) | 0.66 | 0.66 | 0.66 |
Guardrail height (m) | 1 | 1 | 1 |
Outrigger expansion size（m） | 1.6x1.6 | 1.7x1.7 | 1.7x1.7 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 0.75kw | 0.75kw | 0.75kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed at work | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Up/down speed (m / s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 320/355 | 345/380 | 365/400 |
Model | GTWY1-10 | GTWY1-11 | GTWY1-12 |
Working height (m) | 12 | 13 | 14 |
Platform height (m) | 10 | 11 | 12 |
Load capacity (kg) | 136 | 136 | 120 |
Collection length (m) | 1.42 | 1.44 | 1.46 |
Collection width (m) | 0.74 | 0.74 | 0.81 |
Collection height (m) | 1.99 | 1.99 | 2.68 |
Platform length (m) | 0.67 | 0.67 | 0.67 |
Platform width (m) | 0.66 | 0.66 | 0.66 |
Guardrail height (m) | 1 | 1 | 1 |
Outrigger expansion size | 1.9x1.7 | 2.1x1.8 | 2.3x1.9 |
Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
Motor power (kw) | 0.75kw | 0.75kw | 0.75kw |
Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
Maximum allowable wind speed at work | 12.5m/s | 12.5m/s | 12.5m/s |
System oil pressure | 12Mpa | 12Mpa | 12Mpa |
Up/down speed (m / s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
Weight of the whole machine (kg) | 385/420 | 410/445 | 460/495 |
| Model | GTWY1-6 | GTWY1-8 | GTWY1-9 |
| Working height (m) | 8 | 10 | 11 |
| Platform height (m) | 6 | 8 | 9 |
| Load capacity (kg) | 150 | 150 | 150 |
| Collection length (m) | 1.24 | 1.36 | 1.4 |
| Collection width (m) | 0.74 | 0.74 | 0.74 |
| Collection height (m) | 1.99 | 1.99 | 1.99 |
| Platform length (m) | 0.67 | 0.67 | 0.67 |
| Platform width (m) | 0.66 | 0.66 | 0.66 |
| Guardrail height (m) | 1 | 1 | 1 |
| Outrigger expansion size（m） | 1.6x1.6 | 1.7x1.7 | 1.7x1.7 |
| Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
| Motor power (kw) | 0.75kw | 0.75kw | 0.75kw |
| Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
| Maximum allowable wind speed at work | 12.5m/s | 12.5m/s | 12.5m/s |
| System oil pressure | 12Mpa | 12Mpa | 12Mpa |
| Up / down speed (m / s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
| Weight of the whole machine (kg) | 320/355 | 345/380 | 365/400 |
| Model | GTWY1-6 | GTWY1-8 | GTWY1-9 |
| Working height (m) | 8 | 10 | 11 |
| Platform height (m) | 6 | 8 | 9 |
| Load capacity (kg) | 150 | 150 | 150 |
| Collection length (m) | 1.24 | 1.36 | 1.4 |
| Collection width (m) | 0.74 | 0.74 | 0.74 |
| Collection height (m) | 1.99 | 1.99 | 1.99 |
| Platform length (m) | 0.67 | 0.67 | 0.67 |
| Platform width (m) | 0.66 | 0.66 | 0.66 |
| Guardrail height (m) | 1 | 1 | 1 |
| Outrigger expansion size（m） | 1.6x1.6 | 1.7x1.7 | 1.7x1.7 |
| Voltage (v) AC/DC | 220/12v | 220/12v | 220/12v |
| Motor power (kw) | 0.75kw | 0.75kw | 0.75kw |
| Walking mode | Manpower implementation | Manpower implementation | Manpower implementation |
| Maximum allowable wind speed at work | 12.5m/s | 12.5m/s | 12.5m/s |
| System oil pressure | 12Mpa | 12Mpa | 12Mpa |
| Up / down speed (m / s) | 0.18/0.30 | 0.18/0.30 | 0.18/0.30 |
| Weight of the whole machine (kg) | 320/355 | 345/380 | 365/400 |
